30 Watt 12 Volt Monocrystalline Solar Panel
SKU:
HY030-12M
- $64.00
- $64.00
- Unit price
- per
- 30W High Efficiency – Monocrystalline cells for reliable 12V charging.

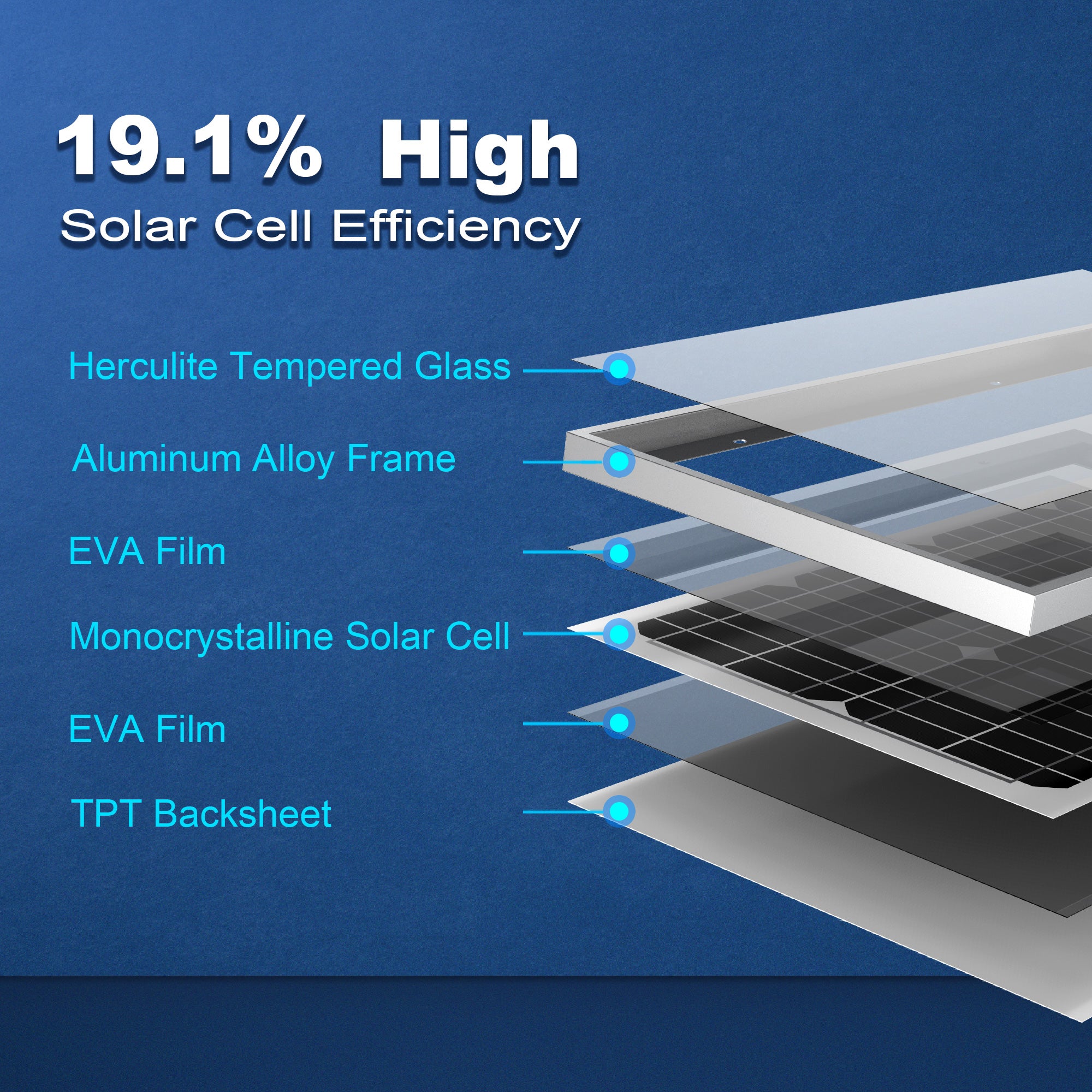

- Durable Build – Anti-reflective glass, aluminum frame, IP65 waterproof.

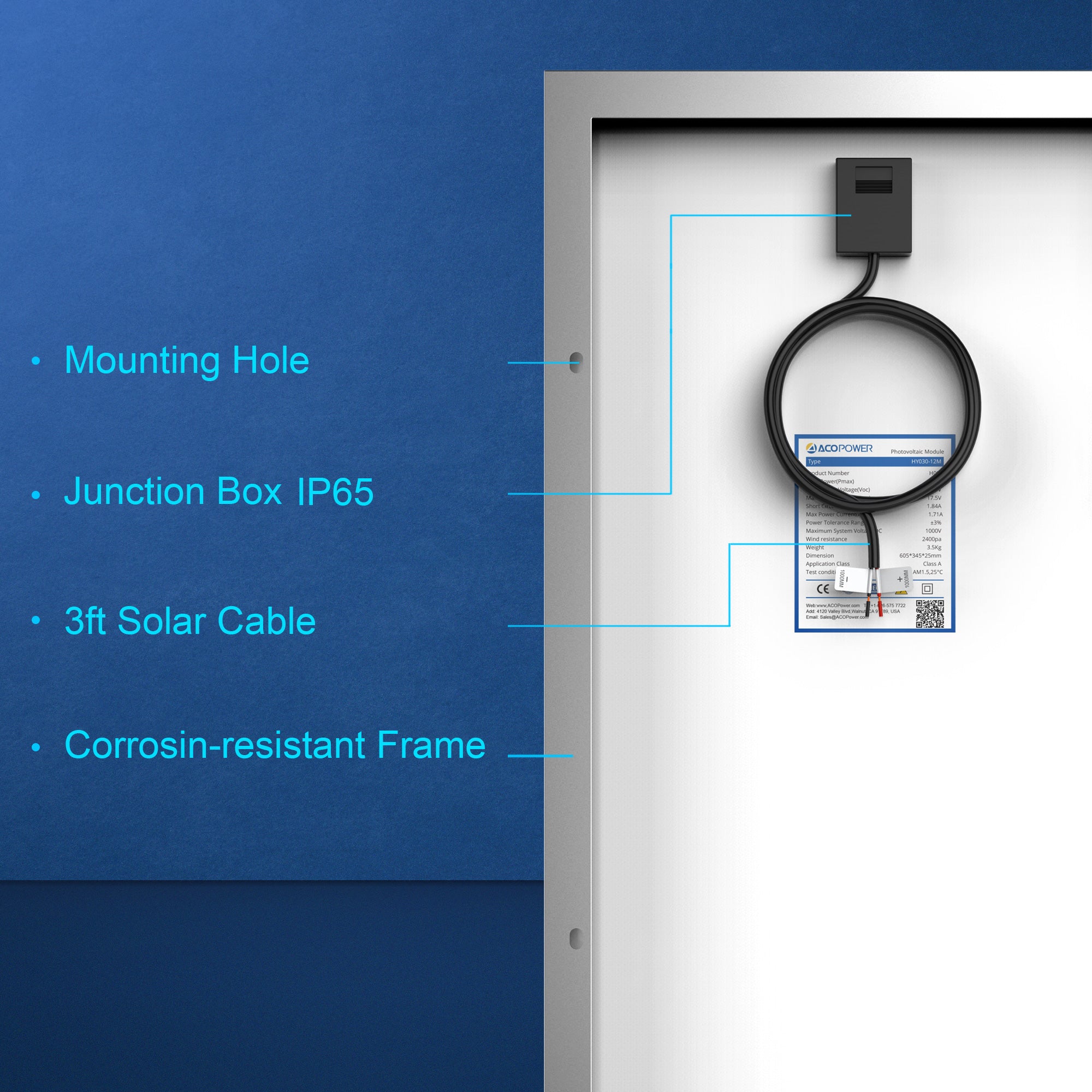

- Easy to Install – Pre-drilled holes & 12AWG quick-connect cables.
- Long Lifespan – 5-year equipment & 20-year performance warranty.
Features
ACOPOWER Small Solar Panel
PRODUCT DETAILS
Specification
| Characteristics | 30W |
| Open-Circuit Voltage(Voc) | 22.0V |
| Optimum Circuit Voltage(Vmp) | 17.5V |
| Short-Circuit Current(Isc) | 1.84A |
| Optimum Circuit Current(Imp) | 1.71A |
| Maximum Power at STC(Pmax) | 30W |
| Module Efficiency | 12.12% |
| Operating Temperature | -40°C ~ +85°C |
| Maximum System Voltage | 1000V DC |
| Power tolerance | ±3% |
| Type of cell | Mono-crystalline 125 x 125 mm (5 inches) |

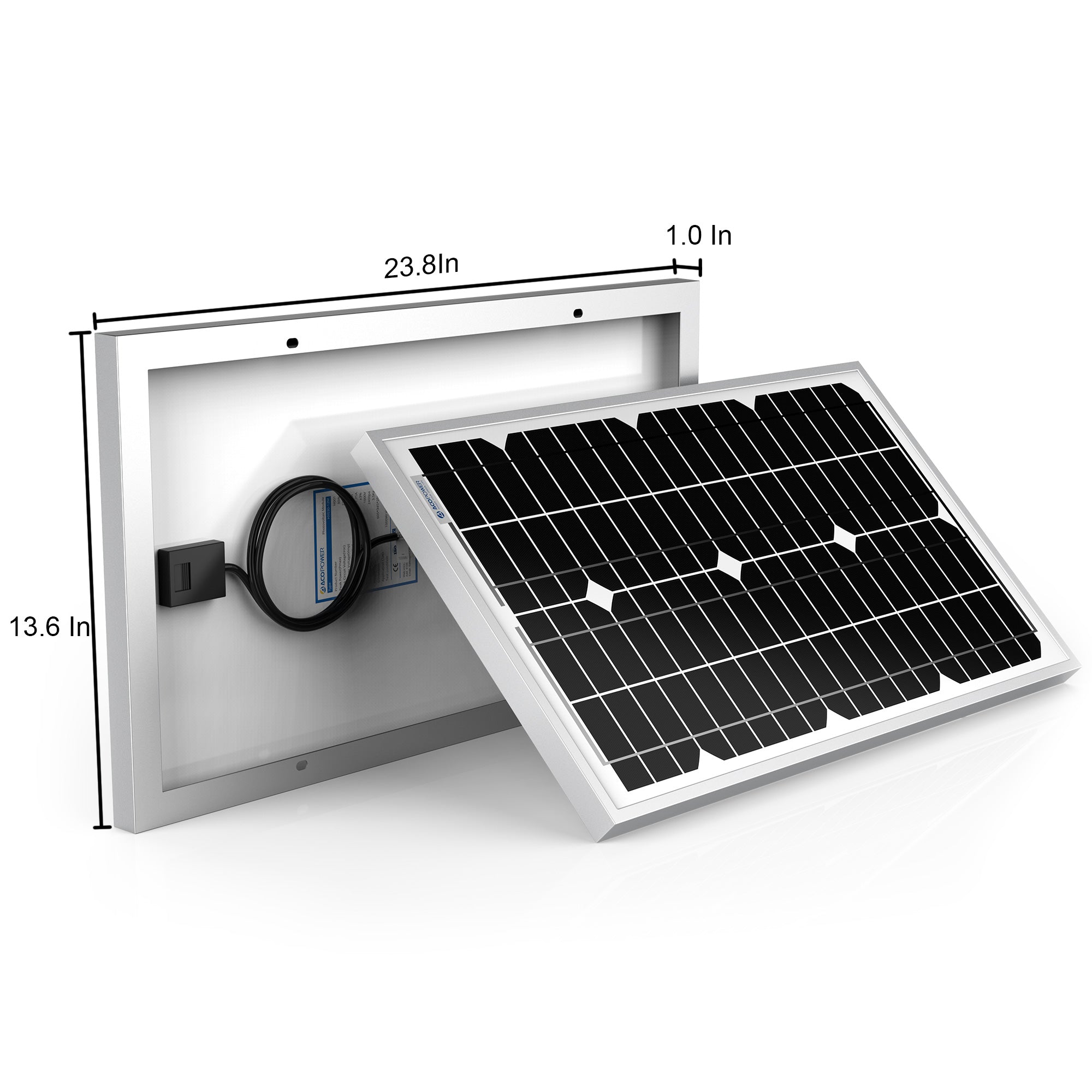

| Dimensions | 605x345x25mm (23.8x13.6x1 in) |
| Weight | 3.5 Kg (7.7 lbs) |
| Workmanship Warranty | 10-Year |
| Performance Warranty | 25-Year Power Output Warranty |
What's in The Box
- Mono Solar Panel
- User Manual
